SUPTRONICS X400V3.0 HiFi Audio Player Expansion Board Kit for Raspberry Pi 1 Model B+ / 2 Model B / 3 Model B / 3 Model B+ / 3 Model A+
- The X400 upgrade V3.0 complements the product, the PCB redesigns and rearranges all ports, uses a lower noise LDO, uses a high efficiency DC / DC converter, and uses the Japanese ALPS volume potentiometer
- Product introduction: X400 V3.0 is a very cost-effective sound card for Raspberry Pi 1 Model B+ / 2 Model B / 3 Model B / 3 Model B+ / 3 Model A+. It uses I2S audio interface solution and supports 24-bit / 192kHz high-quality sound, can be connected to other audio equipment through RCA Lotus socket; built-in high-fidelity headphone amplifier can easily use headphones through standard 3.5mm headphone jack; built-in digital amplifier output power up to 2 x 30W can be connected directly through the terminal block. It makes it easier for players to create a lossless music system or internet radio
- It is recommended to use Volumio, RuneAudio, PiMusicBox and other operating systems
- High-definition audio processing capability up to 192kHz/24bit
- Using TI original high quality audio stereo DAC chip ( TI PCM5122 )
- Dynamic range signal-to-noise ratio ( SNR ) up to 112db, maximum distortion less than 0.0019 percent
- Adopt TI original high quality headphone amplifier chip ( TI TPA6133A )
- High-fidelity headphone amplifier with signal-to-noise ratio up to 93dB
- Using TI Texas Instruments Digital Power Amplifier Chip ( TPA3116D2 )
- The maximum power of the audio amplifier can reach 2 x 30W ( 24Vdc power supply, speaker impedance 8 ohm )
- Use high sensitivity infrared receiver ( 38kHz )
- Powering the DAC with TI's very low noise LDO ( output noise less than 10μVRMS )
- Adopt Japanese ALPS original potentiometer to adjust the amp and speaker volume smoothly
- High efficiency step-down DC / DC converter provides stable power supply to the motherboard, 6 - 26VDC input, 5.1V maximum 3A output
- Keep 2 x 13pin Raspberry Pi GPIO pin header for additional expansion
- Use the I2S audio interface to reduce CPU load
- With RCA output socket, 3.5mm amp socket, speaker terminal block
- Fully compatible with Raspberry Pi

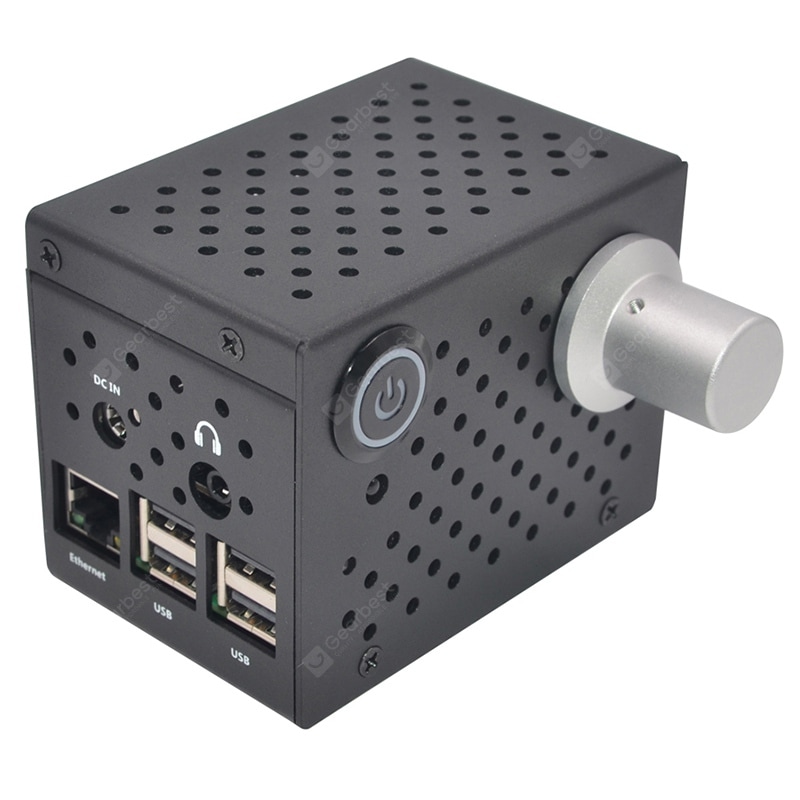

- All-aluminum housing, all-aluminum volume knob, metal switch, etc. can create Raspberry Pi high-quality music finished player
- Easy to assemble by yourself
- Product introduction: X400 V3.0 is a very cost-effective sound card for Raspberry Pi 1 Model B+ / 2 Model B / 3 Model B / 3 Model B+ / 3 Model A+. It uses I2S audio interface solution and supports 24-bit / 192kHz high-quality sound, can be connected to other audio equipment through RCA Lotus socket; built-in high-fidelity headphone amplifier can easily use headphones through standard 3.5mm headphone jack; built-in digital amplifier output power up to 2 x 30W can be connected directly through the terminal block. It makes it easier for players to create a lossless music system or internet radio
- It is recommended to use Volumio, RuneAudio, PiMusicBox and other operating systems
- High-definition audio processing capability up to 192kHz/24bit
- Using TI original high quality audio stereo DAC chip ( TI PCM5122 )
- Dynamic range signal-to-noise ratio ( SNR ) up to 112db, maximum distortion less than 0.0019 percent
- Adopt TI original high quality headphone amplifier chip ( TI TPA6133A )
- High-fidelity headphone amplifier with signal-to-noise ratio up to 93dB
- Using TI Texas Instruments Digital Power Amplifier Chip ( TPA3116D2 )
- The maximum power of the audio amplifier can reach 2 x 30W ( 24Vdc power supply, speaker impedance 8 ohm )
- Use high sensitivity infrared receiver ( 38kHz )
- Powering the DAC with TI's very low noise LDO ( output noise less than 10μVRMS )
- Adopt Japanese ALPS original potentiometer to adjust the amp and speaker volume smoothly
- High efficiency step-down DC / DC converter provides stable power supply to the motherboard, 6 - 26VDC input, 5.1V maximum 3A output
- Keep 2 x 13pin Raspberry Pi GPIO pin header for additional expansion
- Use the I2S audio interface to reduce CPU load
- With RCA output socket, 3.5mm amp socket, speaker terminal block
- Fully compatible with Raspberry Pi
- All-aluminum housing, all-aluminum volume knob, metal switch, etc. can create Raspberry Pi high-quality music finished player
- Easy to assemble by yourself
Specification
Dimensions and Weight | Product weight: 0.2340 kg Product size: 9.00 x 6.00 x 6.00 cm / 3.54 x 2.36 x 2.36 inches Package weight: 0.3180 kg Package size: 12.00 x 7.50 x 7.50 cm / 4.72 x 2.95 x 2.95 inches |
|---|---|
Package Contents | Package Contents: 1 x Expansion Board, 4 x Copper Pillar, 8 x M3*6mm Screw, 1 x All-aluminum Enclosure, 1 x Aluminum Volume Knob, 1 x Metal Power Switch, 4 x M2.5*28mm Screw, 4 x Countersunk Screw, 1 x Inner Hexagonal L-wrench, 1 x Adapter, 1 x EU Plug Power Cable |
