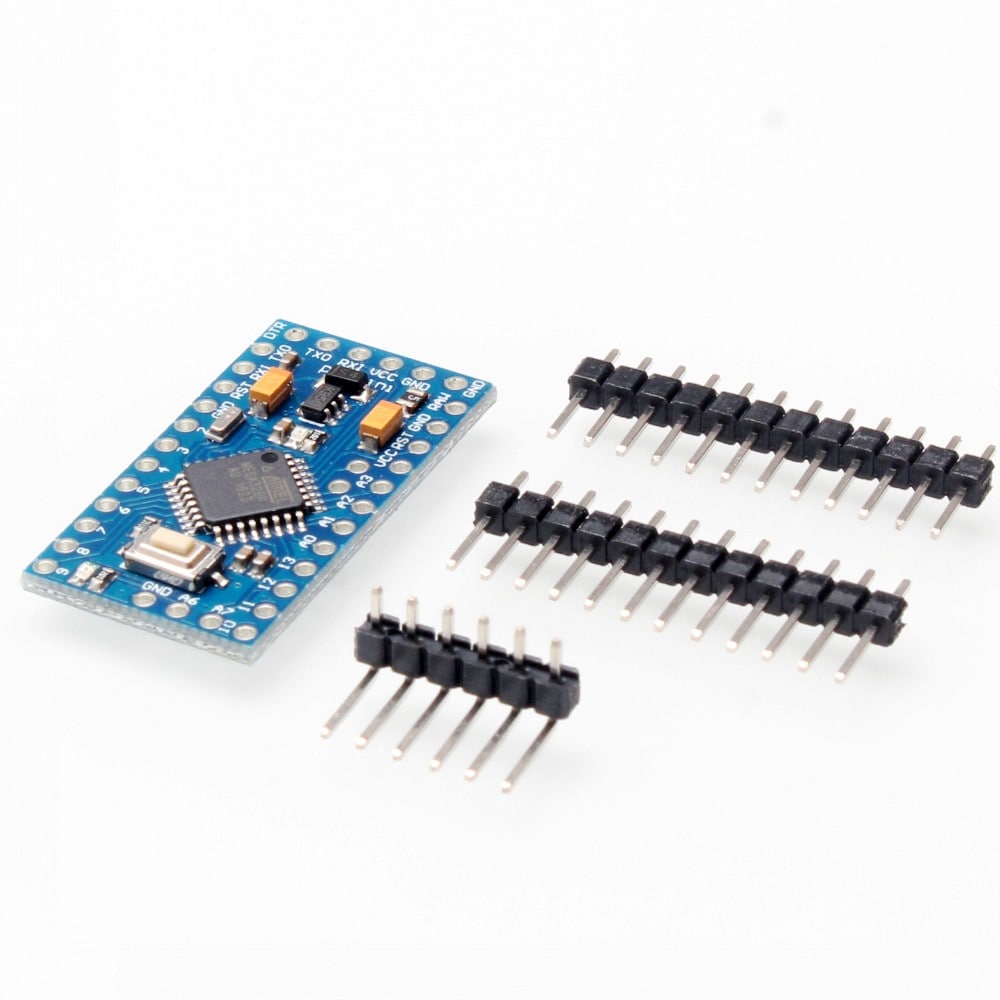

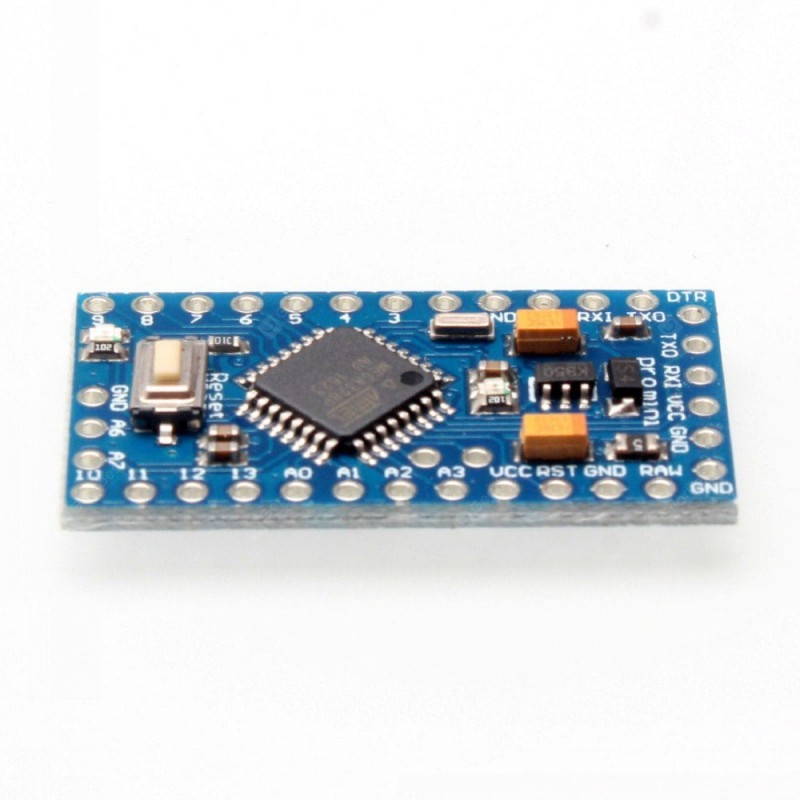

Pro Mini 328 5V 16MHZ Development Board for Arduino
1. 20 digital input/output port RX and TX, D2 ~ D13, A0 ~ A5
2. 8 analog input port A0 ~ A7
3. 1 to the TTL level a serial port to send and receive port RX/TX
4.6 a PWM port, D3, D5, D6, D9, D10, D11
5. Using Atmel Atmega328P - AU microcontroller
6. Support serial download
7. Support external 3.8 V ~ 12 V dc power supply
8. Support the 12 v and the following batteries
9. 16 MHZ clock frequency
2. 8 analog input port A0 ~ A7
3. 1 to the TTL level a serial port to send and receive port RX/TX
4.6 a PWM port, D3, D5, D6, D9, D10, D11
5. Using Atmel Atmega328P - AU microcontroller
6. Support serial download
7. Support external 3.8 V ~ 12 V dc power supply
8. Support the 12 v and the following batteries
9. 16 MHZ clock frequency
Specification
Custom | |
---|---|
General | Type: Development board Mainly Compatible with: Ardunio,Arduino Uno 328,Arduino Diecimila/Duemilanvoe 328 |
Electronic Components | Architecture: Arduino |
Power Batteries | Batteries Included: No |
Weight and Size | Product weight: 0.0100 kg Package weight: 0.0100 kg Product Size(L x W x H): 3.30 x 1.80 x 0.20 cm / 1.3 x 0.71 x 0.08 inches Package Size(L x W x H): 6.00 x 8.00 x 1.00 cm / 2.36 x 3.15 x 0.39 inches |
Package Contents | Package Contents: 1 x Pro Mini 328 |
