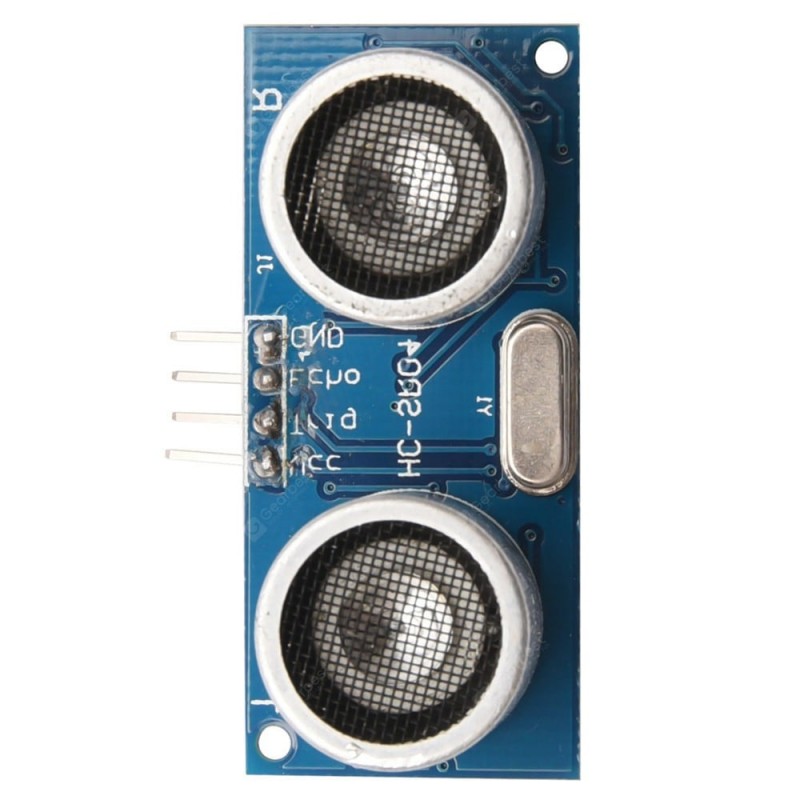

Ultrasonic Sensor Module SR04 for Arduino
HC-SR04 is a favorable and popular sensor which can be used for measuring the distance between itself and the object that is placed in front of the sensor. Connecting to Arduino itself is simple, the sensor requires only two codes for controlling and uses 5V voltage, there is also a library that provides us with distance information. Make sure You check How to use module upright in TUTORIALS category.
Range: 2cm - 400cm
Accuracy: 3mm
Measurement angle: 15 degrees
Voltage: 5V
Current:<>
Comes with 4-pin soldered male headers
Range: 2cm - 400cm
Accuracy: 3mm
Measurement angle: 15 degrees
Voltage: 5V
Current:<>
Comes with 4-pin soldered male headers
Specification
General | Mainly Compatible with: Ardunio |
|---|---|
Electronic Components | Architecture: Arduino/AVR Input Voltage: 5V |
Weight and Size | Product weight: 0.0060 kg Package weight: 0.0100 kg Product Size(L x W x H): 4.50 x 2.00 x 1.40 cm / 1.77 x 0.79 x 0.55 inches Package Size(L x W x H): 8.00 x 4.00 x 2.00 cm / 3.15 x 1.57 x 0.79 inches |
Package Contents | Package Contents: 1 x SR04 |
