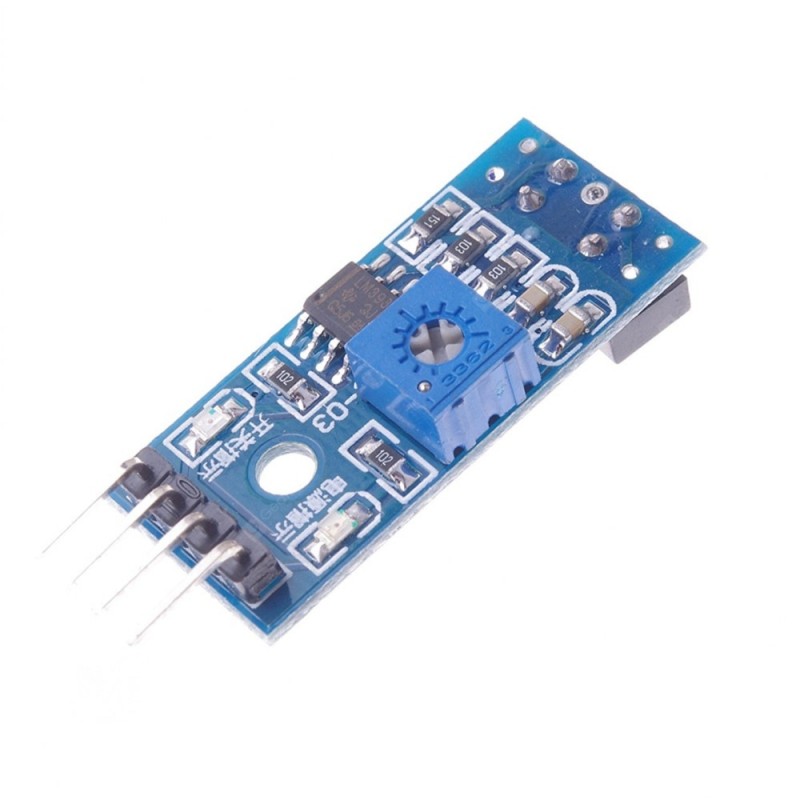

TCRT5000 Infrared Reflective Switch IR Barrier Line Track Sensor Module
Features:
TCRT5000 sensor of infrared emission diode constantly launch infrared, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the light activated triode has been in the off state, the output end of the module at this time for the high level, indicating diode has been put out state; Detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, at this time the output of the module for the low level, instructs the diode lights.
Specification:
1. Using infrared reflection sensors TCRT5000
2. Test reflection distance: 1mm to 25mm
3. signal waveform, driving ability is strong, for more than 15 ma.
4. With many adjustable precision potentiometer to adjust sensitivity
5. The working voltage of 3.3V to 5V
6. Output form: digital switch output (0 and 1)
7. Has a fixed bolt hole, convenient installation
8. Small board PCB size: 3.1cm x 1.4cm
9. Applications: 1, the electricity meter pulse data sampling
10. Fax machine, shredder paper detection
11. Obstacle detection
12. Black and white line detection
TCRT5000 sensor of infrared emission diode constantly launch infrared, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the light activated triode has been in the off state, the output end of the module at this time for the high level, indicating diode has been put out state; Detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, at this time the output of the module for the low level, instructs the diode lights.
Specification:
1. Using infrared reflection sensors TCRT5000
2. Test reflection distance: 1mm to 25mm
3. signal waveform, driving ability is strong, for more than 15 ma.
4. With many adjustable precision potentiometer to adjust sensitivity
5. The working voltage of 3.3V to 5V
6. Output form: digital switch output (0 and 1)
7. Has a fixed bolt hole, convenient installation
8. Small board PCB size: 3.1cm x 1.4cm
9. Applications: 1, the electricity meter pulse data sampling
10. Fax machine, shredder paper detection
11. Obstacle detection
12. Black and white line detection
Specification
General | Type: TCRT5000 Infrared Reflective Switch IR Barrier Line Track Sensor Module |
|---|---|
Weight and Size | Product weight: 0.0100 kg Package weight: 0.0100 kg Product Size(L x W x H): 4.00 x 1.40 x 2.00 cm / 1.57 x 0.55 x 0.79 inches Package Size(L x W x H): 17.00 x 8.00 x 2.00 cm / 6.69 x 3.15 x 0.79 inches |
Package Contents | Package Contents: 1 x TCRT5000 Module |
