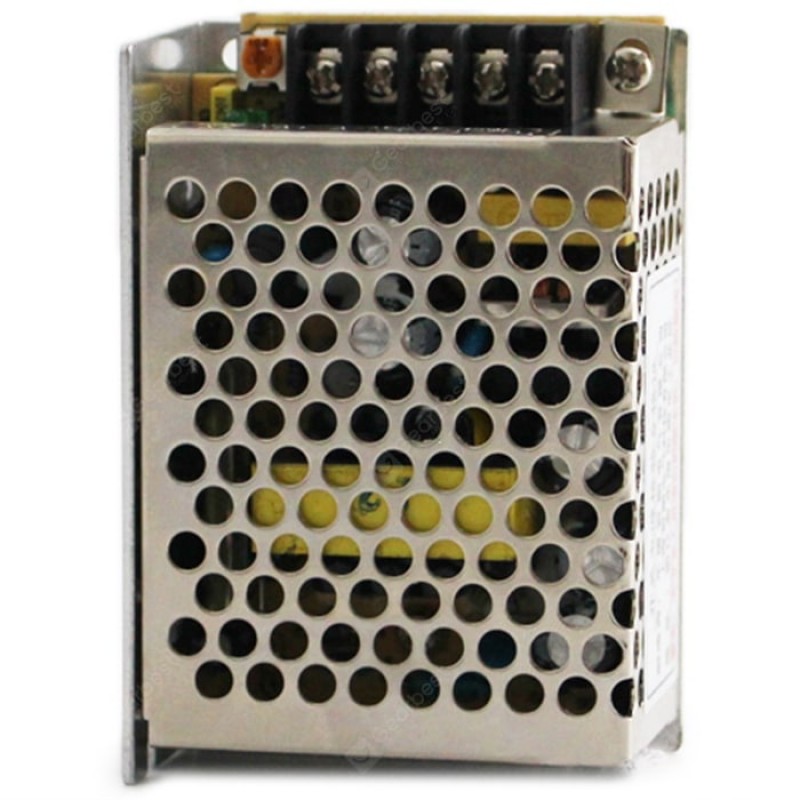

ZHEQI MS - 15 Single Output DC Universal Regulated Switching Power Supply
Main Features：
● Strong anti-interference, full power, overvoltage protection
● 105 degrees Celsius output capacitance
● Universal AC input high efficiency and low operating temperature
● Soft start current can effectively reduce AC input
● Light weight 100% full load burn
● Minimum Wave Specifications: Waveform and Noise 60mVp - p
● Entrance stability: plus or minus 0.5 percent
● Load stability: plus or minus 1 percent
● DC output power: 15W
● Efficiency: 68 percent
● Each shaft withstand voltage input and output internal: 1.5KvAC
● Operating temperature and humidity: minus 10 degrees Celsius - 50 degrees Celsius, 20 - 90 percent RH
● Storage temperature and humidity: minus 20 degrees Celsius - 85 degrees Celsius, 10 - 95 percent RH
● Strong anti-interference, full power, overvoltage protection
● 105 degrees Celsius output capacitance
● Universal AC input high efficiency and low operating temperature
● Soft start current can effectively reduce AC input
● Light weight 100% full load burn
● Minimum Wave Specifications: Waveform and Noise 60mVp - p
● Entrance stability: plus or minus 0.5 percent
● Load stability: plus or minus 1 percent
● DC output power: 15W
● Efficiency: 68 percent
● Each shaft withstand voltage input and output internal: 1.5KvAC
● Operating temperature and humidity: minus 10 degrees Celsius - 50 degrees Celsius, 20 - 90 percent RH
● Storage temperature and humidity: minus 20 degrees Celsius - 85 degrees Celsius, 10 - 95 percent RH
Specification
Weight and Size | Product weight: 0.1500 kg Package weight: 0.3000 kg Product Size(L x W x H): 8.50 x 5.80 x 3.80 cm / 3.35 x 2.28 x 1.5 inches Package Size(L x W x H): 10.00 x 6.00 x 5.00 cm / 3.94 x 2.36 x 1.97 inches |
|---|---|
Package Contents | Package Contents: 1 x Power Supply |
