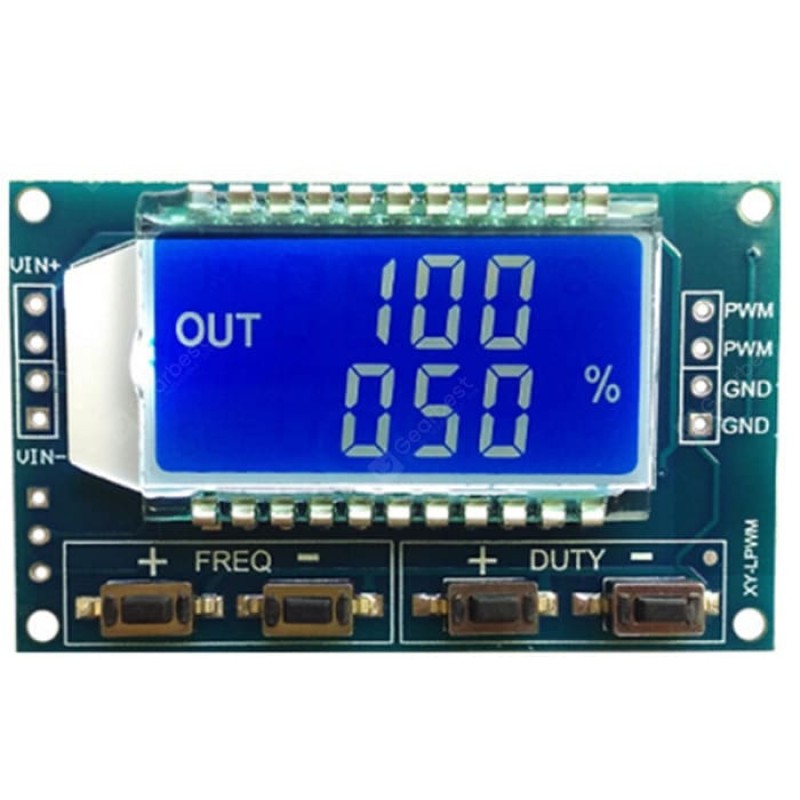

XY - LPWM PWM Pulse Frequency Duty Cycle Adjustable Signal Module
Module highlights:
1. LCD liquid crystal display frequency and duty cycle, very clear, PWM output can be set separately frequency and duty cycle;
2. Wide frequency range and high precision;
3. Serial communication
4. Material: fibrous tissue
Module parameters:
1. Working voltage: 3.3 - 30V;
2. Frequency range: 1Hz~150KHz;
3. Frequency accuracy: the accuracy in each range is about 2pct;
4. Signal load capacity: the output current can be around 5 - 30ma;
5. Output amplitude: The PWM amplitude is equal to the supply voltage;
6. Ambient temperature: -20 - +70Deg.C.
1. LCD liquid crystal display frequency and duty cycle, very clear, PWM output can be set separately frequency and duty cycle;
2. Wide frequency range and high precision;
3. Serial communication
4. Material: fibrous tissue
Module parameters:
1. Working voltage: 3.3 - 30V;
2. Frequency range: 1Hz~150KHz;
3. Frequency accuracy: the accuracy in each range is about 2pct;
4. Signal load capacity: the output current can be around 5 - 30ma;
5. Output amplitude: The PWM amplitude is equal to the supply voltage;
6. Ambient temperature: -20 - +70Deg.C.
Specification
Dimensions and Weight | Product weight: 0.0140 kg Product size: 5.20 x 3.20 x 1.00 cm / 2.05 x 1.26 x 0.39 inches Package weight: 0.0300 kg Package size: 10.00 x 5.00 x 3.00 cm / 3.94 x 1.97 x 1.18 inches |
|---|---|
Package Contents | Package Contents: 1 x Module |
