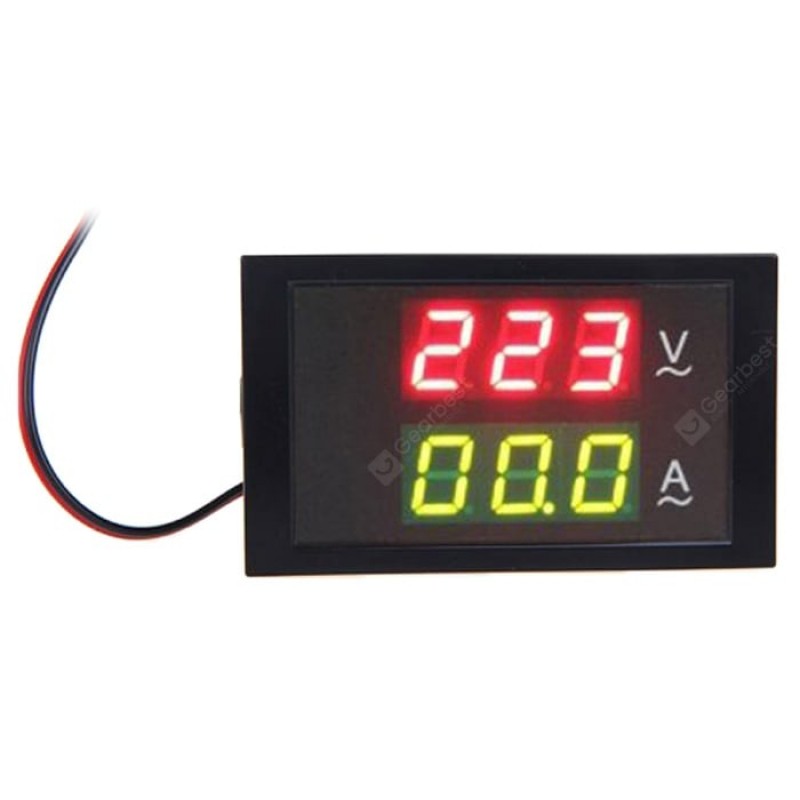

TS-DL85-2042 Mini AC 80-300V LED Panel Voltage Meter Ammeter Digital Dual Display with Current Transformer
Description:
1. Please first connect the instrument current transformer. The second connection plan 80 - 300V AC line. After connection, please don't touch any part of the project, in order to avoid electrical shock.
2. Misconnection between input voltage and current transformer will damage the instrument. Please make sure the connection is correct.

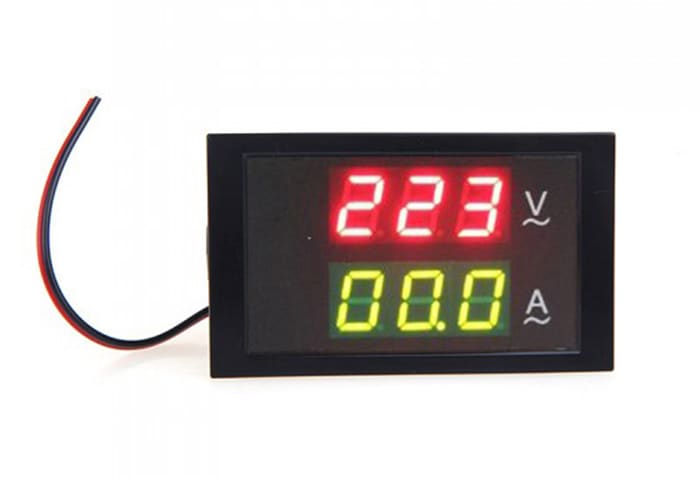

3. Also showed by ac voltage and current LED digital tube.

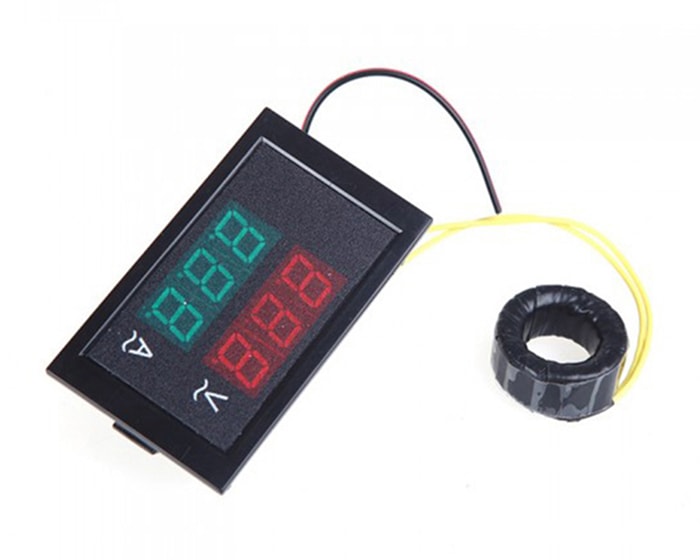

4. Including a separate small precision current transformer, can extend the cables.
5. Easy to measure, it is connected to the power and leading lines through the current transformer.
6. Wide range of voltage and current measurement.
Main Features:
Measuring range: AC 80 - 300V
Power supply: less than 0.2V
Installation: the embedded installation
Accuracy: 1% plus or minus 2 digits
Measurement speed: about 2 times per second
Display type: LED digital tube
1. Please first connect the instrument current transformer. The second connection plan 80 - 300V AC line. After connection, please don't touch any part of the project, in order to avoid electrical shock.
2. Misconnection between input voltage and current transformer will damage the instrument. Please make sure the connection is correct.
3. Also showed by ac voltage and current LED digital tube.
4. Including a separate small precision current transformer, can extend the cables.
5. Easy to measure, it is connected to the power and leading lines through the current transformer.
6. Wide range of voltage and current measurement.
Main Features:
Measuring range: AC 80 - 300V
Power supply: less than 0.2V
Installation: the embedded installation
Accuracy: 1% plus or minus 2 digits
Measurement speed: about 2 times per second
Display type: LED digital tube
Specification
Weight and Size | Product weight: 0.0630 kg Package weight: 0.1220 kg Product Size(L x W x H): 7.00 x 4.20 x 3.50 cm / 2.76 x 1.65 x 1.38 inches Package Size(L x W x H): 7.50 x 4.50 x 4.50 cm / 2.95 x 1.77 x 1.77 inches |
|---|---|
Package Contents | Package Contents: 1 x Digital Display Table, 1 x Transformer |
