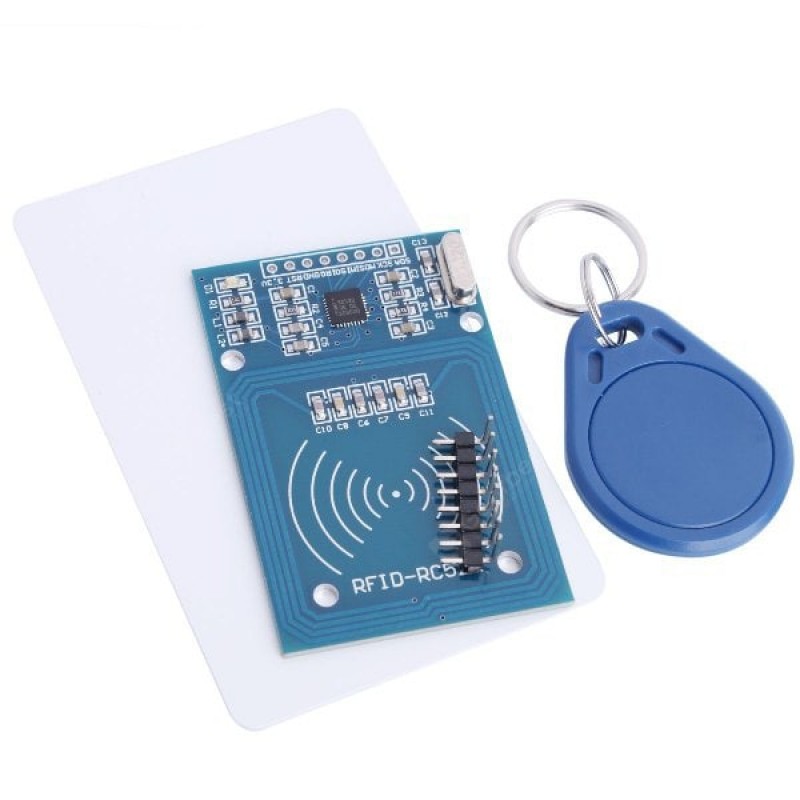

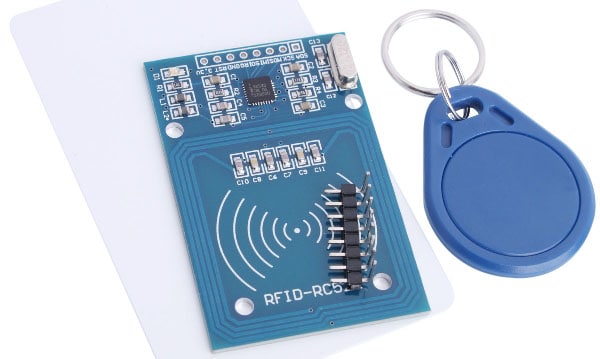

RFID-RC522 DIY Safety Key Fob Sensor RF IC Card Module Board
Main Features:
Working current: DC 3.3V / 13 - 26mA
Idle current: DC 3.3V / 10 - 13mA
Sleep current: <>
Peak current: <>
Working frequency: 13.56MHz
Supports card: Mifare1 S50, mifare1 S70, mifare Ultralight, mifare Pro, mifare Desfare
Application: Various electronic products and DIY projects
Working current: DC 3.3V / 13 - 26mA
Idle current: DC 3.3V / 10 - 13mA
Sleep current: <>
Peak current: <>
Working frequency: 13.56MHz
Supports card: Mifare1 S50, mifare1 S70, mifare Ultralight, mifare Pro, mifare Desfare
Application: Various electronic products and DIY projects
Specification
General | Model: RFID-RC522 Material: Plastic + iron + PCB |
|---|---|
Weight and Size | Product weight: 0.008 kg Package weight: 0.080 kg Product Size(L x W x H): 6 x 4 x 0.5 cm / 2.36 x 1.57 x 0.20 inches Package Size(L x W x H): 12 x 8 x 2 cm / 4.72 x 3.14 x 0.79 inches |
Package Contents | Package Contents: 1 x PCB Board， 1 x IC Card, 1 x Sensor Key, 1 x Bent Pin |
