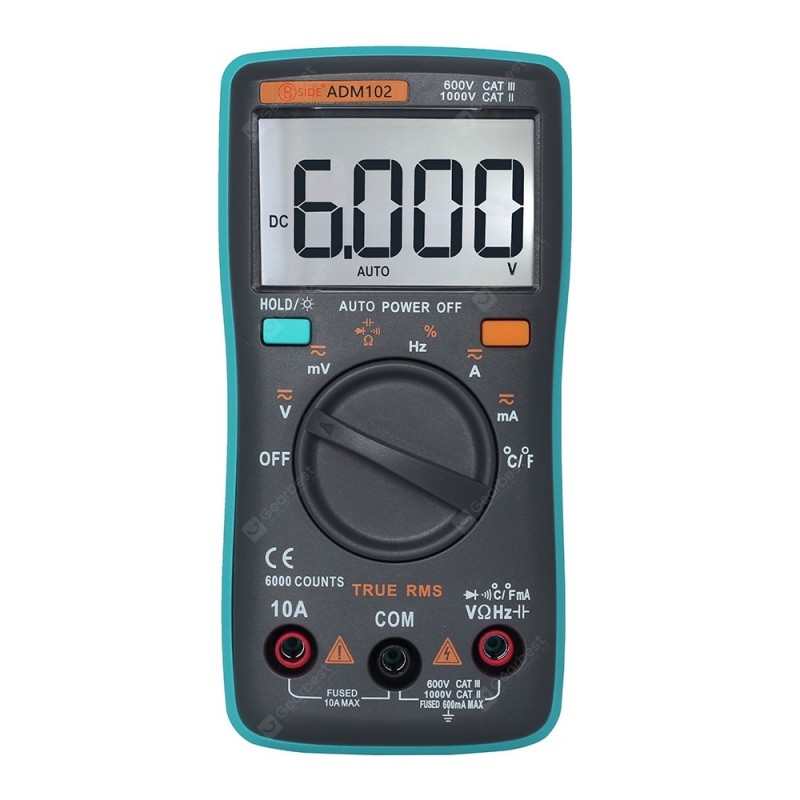

ZT102 Digital Multimeter

ZT102 Digital Multimeter

Product Code:klrqXuKO
Availability:In Stock
  • US $17.59

  • Ex Tax:US $17.59


Descriptions:

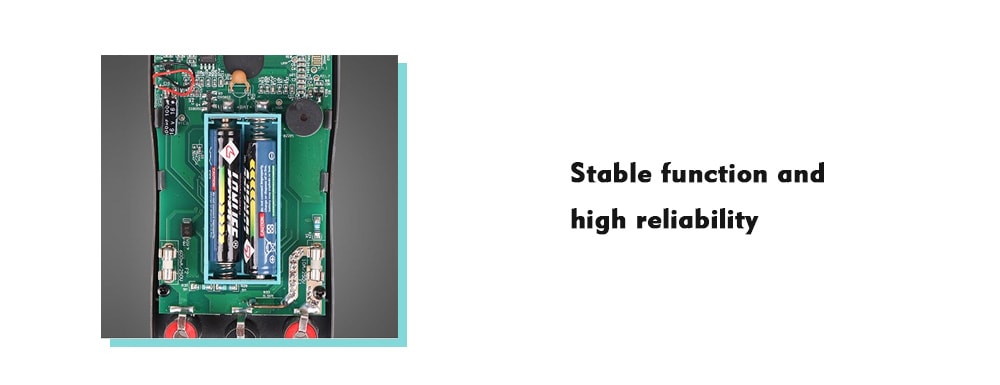

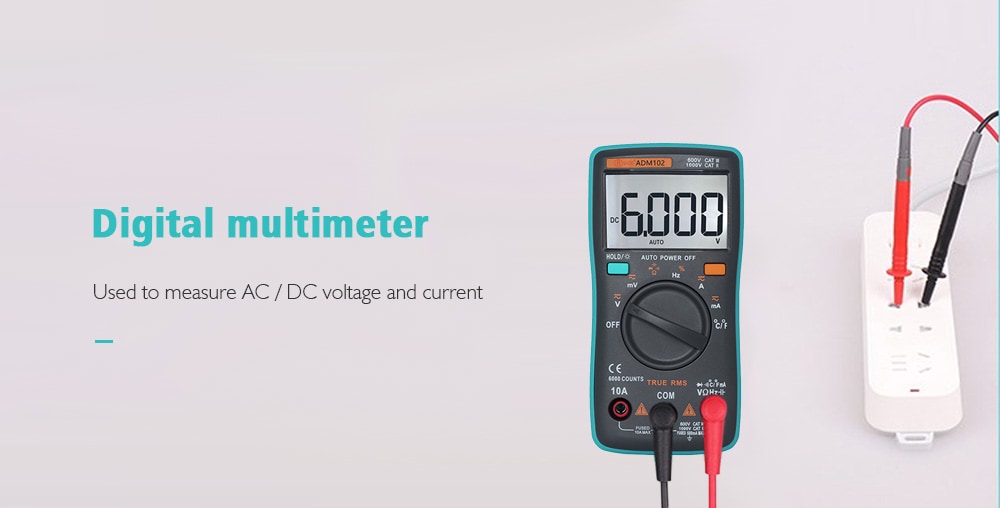

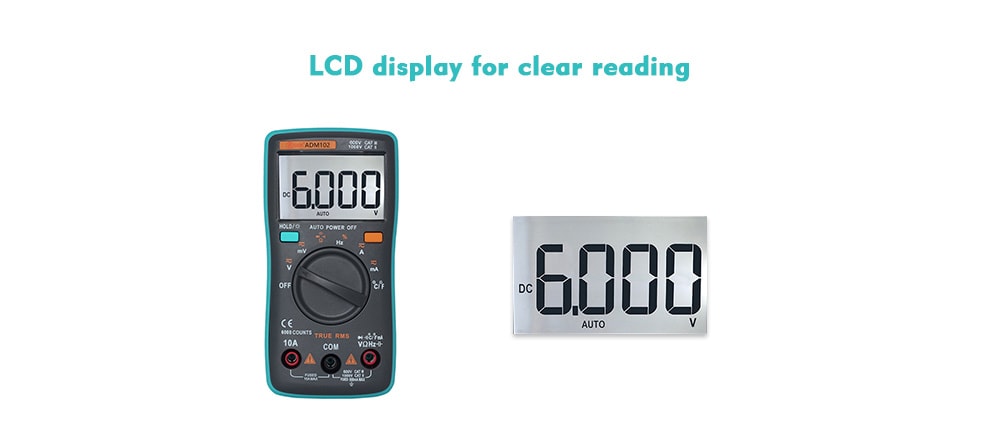

It is a auto-ranging digital multimeter using double-integral style A / D transform as the core, which can be used to measure AC / DC voltage, AC / DC current, resistance, capacitance, diode and continuity testing, temperature, frequency and etc. They are characterized by the stable function and high reliability, with the features of overload protection and LCD display for clear reading, an ideal tool for lab, factory, radio fans and family use.

Main Features:
- Display ( LCD ): 6000 counts
- Ranging: auto
- Material: ABS
- Update rate: 3 times / second
- Battery type: 1.5V, 2 x AAA batteries ( not included )
- With capacitance measurement
- With temperature measurement

Specification

General

Model: Double-integral Style A / D Transform
Type: Multimeter
Measurement range : Auto

Technology Parameters

Max. Display: 6000
DC Voltage: 600mV / 6V / 60V / 600V / 1000V
AC Voltage: 600mV / 6V / 60V / 600V / 750V
DC Current: 600uA / 6000uA / 60mA / 600mA / 10A
AC Current: 600uA / 6000uA / 60mA / 600mA / 10A
Resistance : 600ohm / 6Kohm / 60Kohm / 600Kohm / 6Mohm / 60Mohm
Frequency: 5Hz / 50Hz / 500Hz / 5KHz / 50KHz / 500KHz / 5MHz / 10MHz
Capacitance: 10nF / 100nF / 1uF / 10uF / 100uF / 1000uF / 10000uF

Special function

Data Hold: Yes
Backlit Display: Yes
Auto power off: Yes
Operation Method: Auto Range
Powered by: 2 x AAA Battery

Dimensions and Weight

Product weight: 0.1260 kg
Package weight: 0.2660 kg
Product size (L x W x H): 12.70 x 6.30 x 2.50 cm / 5 x 2.48 x 0.98 inches
Package size (L x W x H): 16.50 x 10.00 x 4.50 cm / 6.5 x 3.94 x 1.77 inches

Package Contents

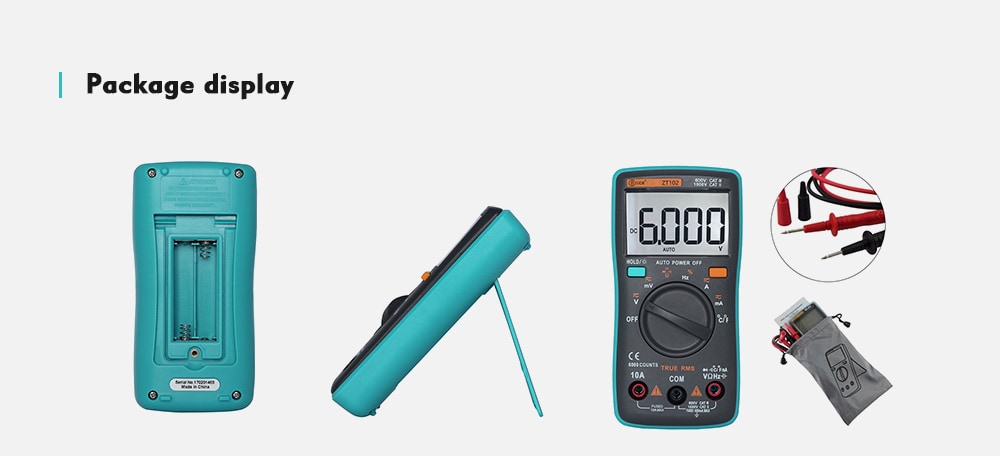

Package Contents: 1 x Cloth Bag, 1 x Multimeter Table Pen ( Pair ), 1 x Multimeter, 1 x Probe ( Pair ), 1 x English Manual
