Relay Module Protection Relay Expansion Board

Relay Module Protection Relay Expansion Board

Product Code:YWnjZevp
Availability:In Stock
  • US $3.86

  • Ex Tax:US $3.86

1. Relay contact capacity 250V10A. Relay output normally open, normally closed;
2. Active low. 5V relay signal input voltage range :0-5V;
3. The VCC system power. JD-VCC relay power. Default 5V relay. JD-VCC and VCC shorted.

Wiring instructions:

VCC: system power supply positive

GND: system power supply negative

IN1--IN2: Relay Control Port

(Do not reverse, causing the module to burn out and we will not return it.)

Specification

General

Type: Other

Weight and Size

Product weight: 0.0310 kg
Package weight: 0.0310 kg
Product Size(L x W x H): 5.10 x 3.90 x 1.90 cm / 2.01 x 1.54 x 0.75 inches
Package Size(L x W x H): 10.00 x 6.00 x 3.00 cm / 3.94 x 2.36 x 1.18 inches

Package Contents

Package Contents: 1 x Relay module

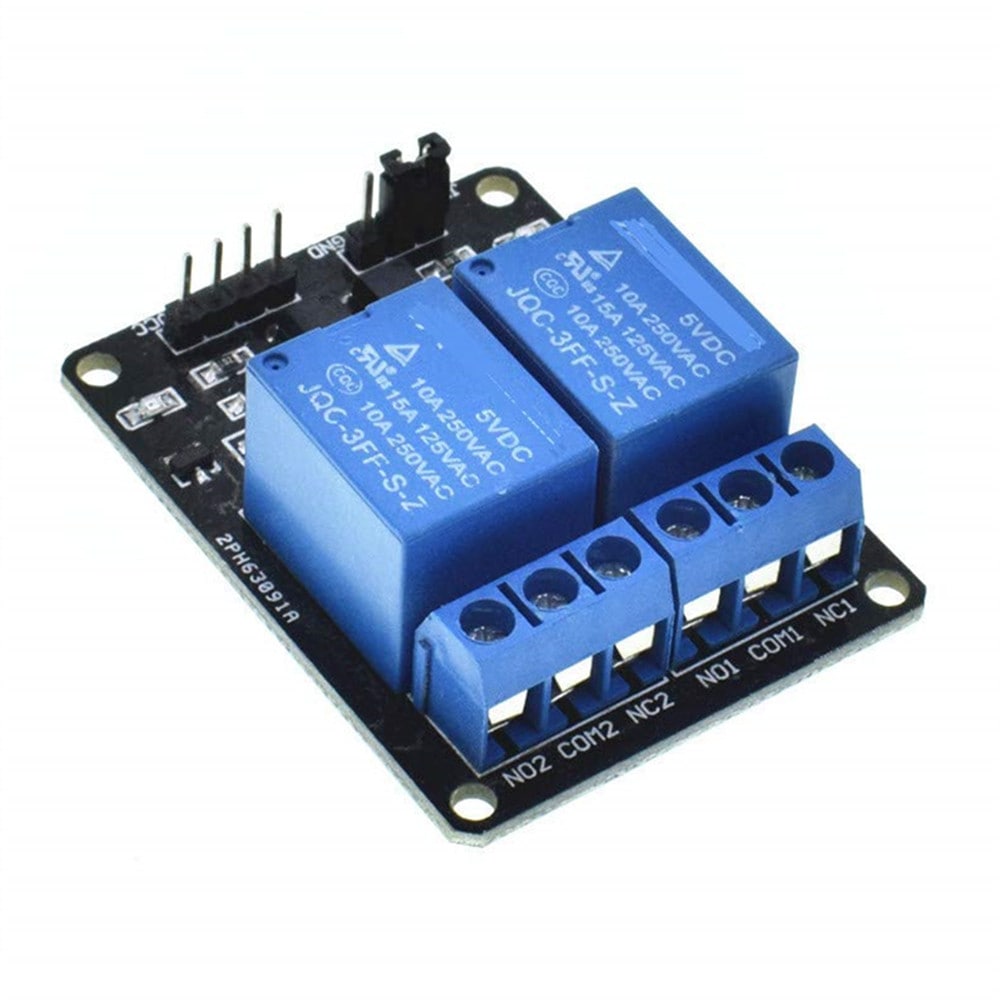

Relay Module Protection Relay Expansion Board- Black

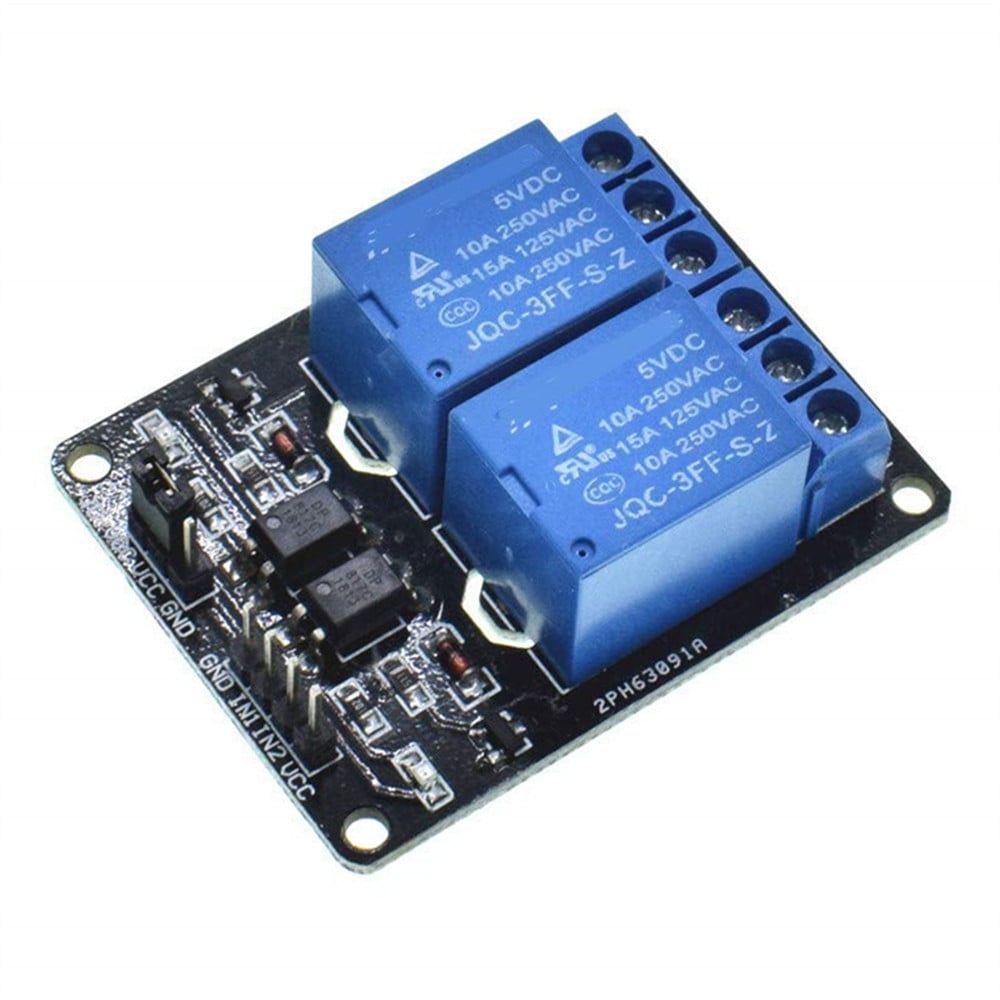

Relay Module Protection Relay Expansion Board- Black

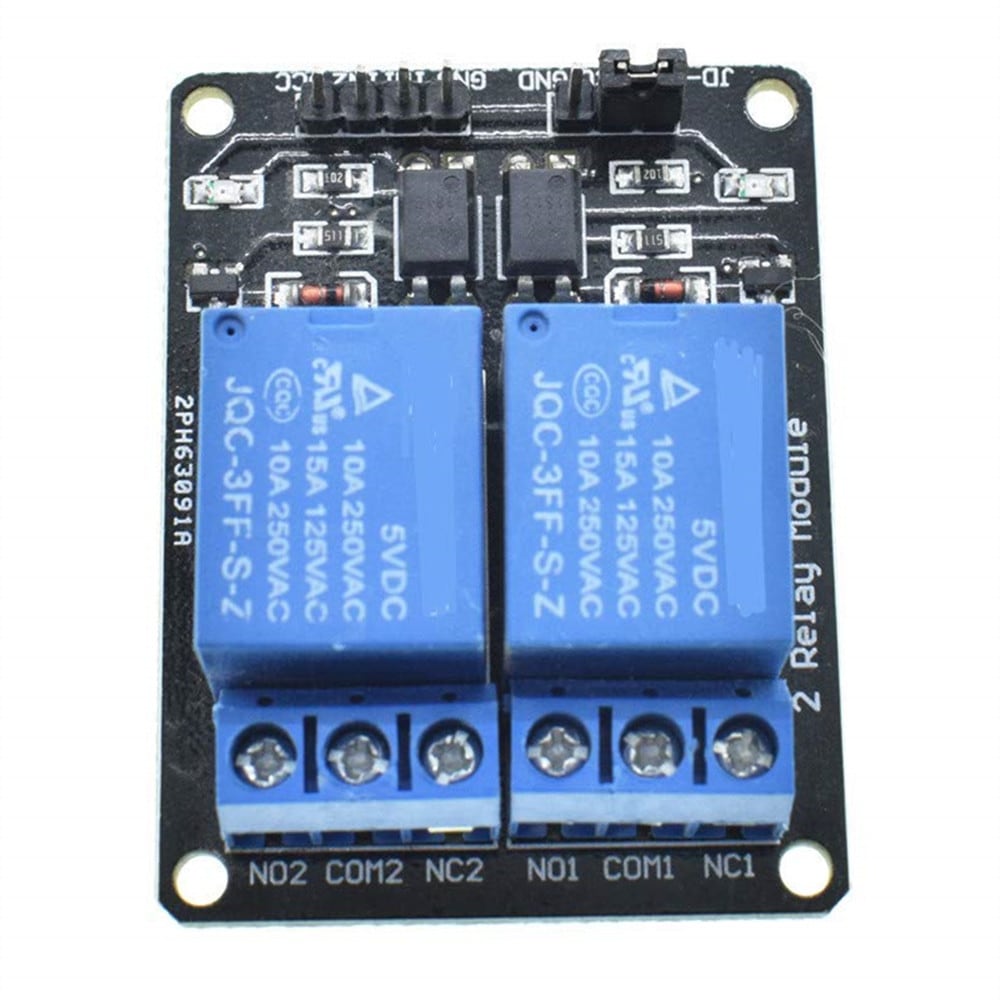

Relay Module Protection Relay Expansion Board- Black

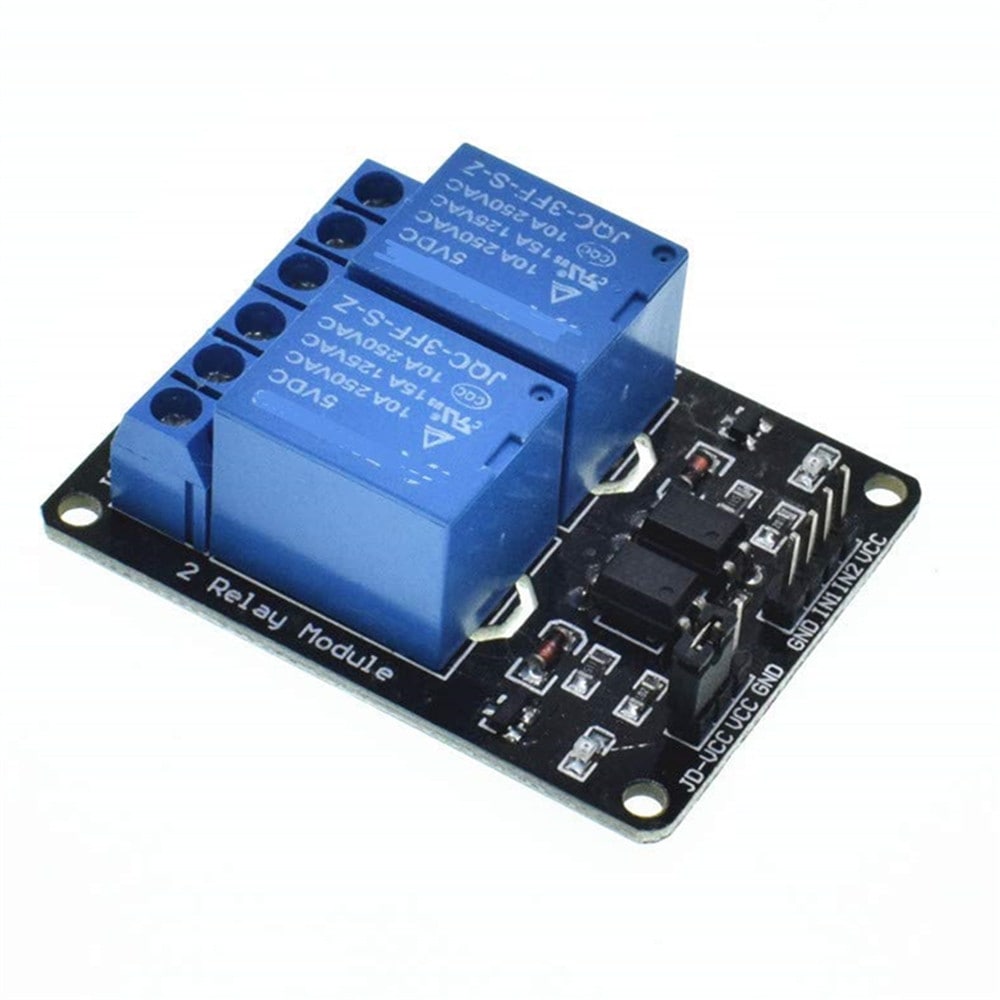

Relay Module Protection Relay Expansion Board- Black

Relay Module Protection Relay Expansion Board- Black
