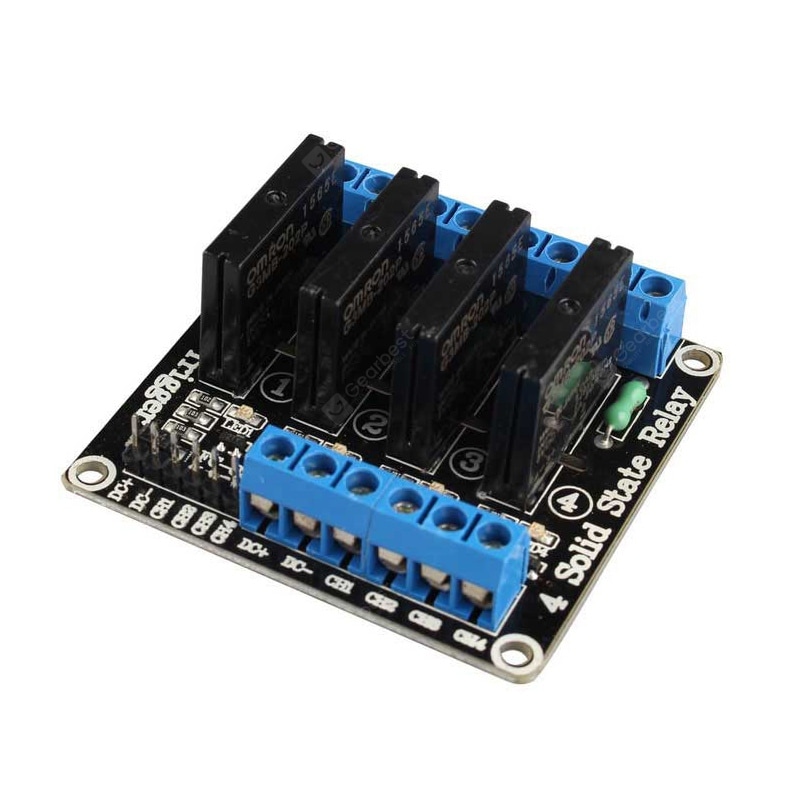

Solid State High Level 4 Channel 5V DC Relay Module

Solid State High Level 4 Channel 5V DC Relay Module

Product Code:3r4e0Ar7
Availability:In Stock
  • US $9.33

  • Ex Tax:US $9.33

5V Omron solid state relays 240V 2A, output with resistance fuse 240V 2A.
Input power supply: 5V DC (160mA)
Input control signal voltage:
(0~-2.5V low state relay OFF)
(3.3~5V state high relay ON)
Blue KF301 terminal connection control line is more convenient.

Module interface:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay Module signal triggering end (high level trigger effective)

Note: Power must be DC voltage and need to be consistent with the voltage relay

Specification

Dimension and Weight

Product weight: 0.0400 kg
Package weight: 0.0420 kg
Product size (L x W x H): 5.70 x 5.50 x 2.50 cm / 2.24 x 2.17 x 0.98 inches
Package size (L x W x H): 7.00 x 8.00 x 3.00 cm / 2.76 x 3.15 x 1.18 inches

Package Contents

Package Contents: 1 * Relay module
