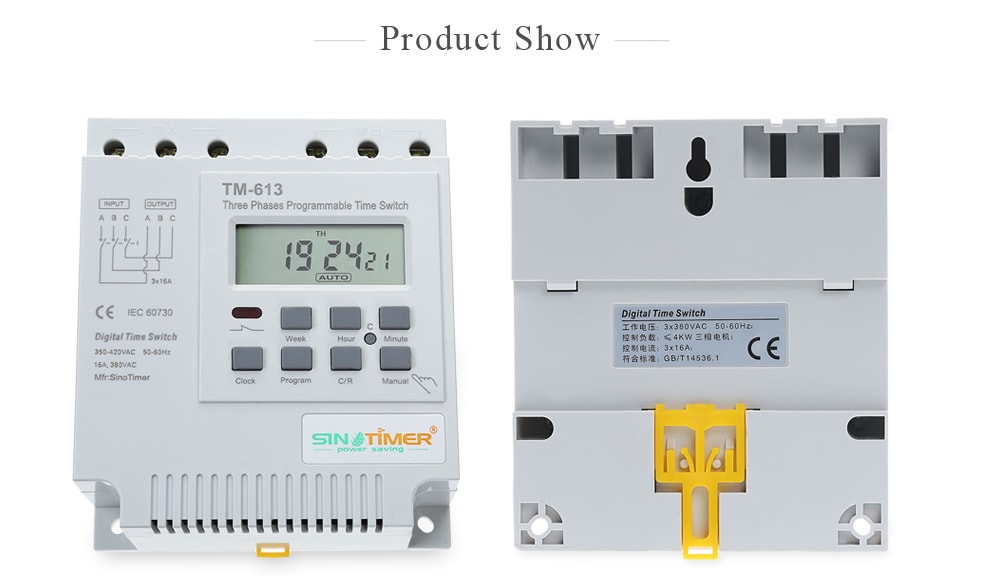

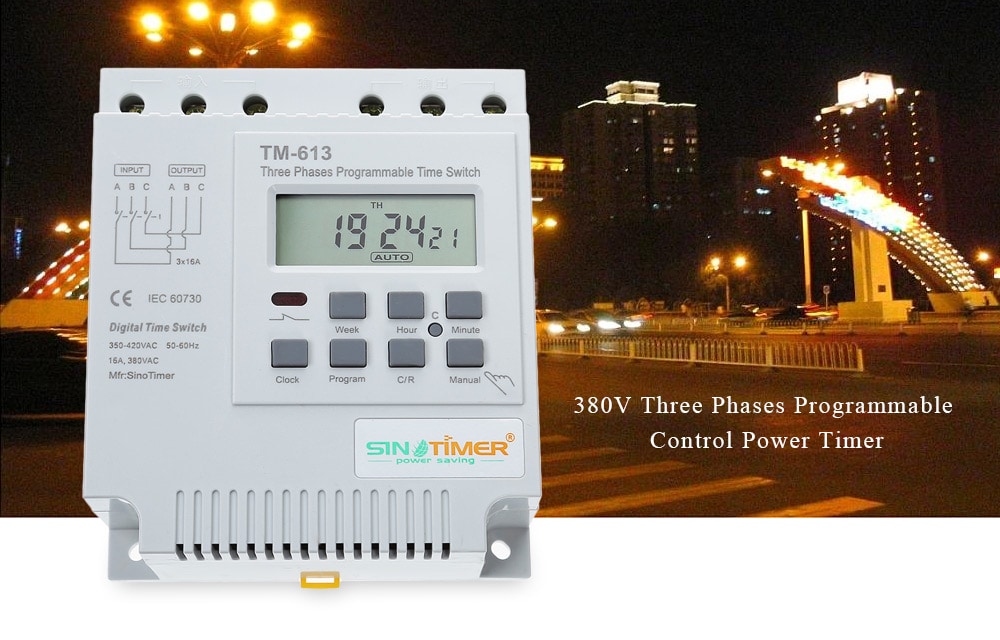

SINOTIMER 380V Programmable Control Power Timer
Main Features:
- LCD display, clear and concise
- Use the high quality anti-interference chip
- To achieve energy saving and efficient intelligent
- Three-phase design, safe, reliable and stable performance
- It is widely used in pumps, pond aerators, steaming machines, water heaters, billboards, neon signs, exhaust fans, etc.
Technical Data:
- Working volt: 3 x 380V AC 50 - 60Hz
- Output control: 3 x 16A
- Battery: Ni-MH button battery
- Error correction: 1 second/day ( 25 Deg.C )
- ON / OFF operation: 17 ON / OFF
- Power consumption: 2W and less
- Minimum interval: 1 minute
- Memory: 180 days
- Timer range: 1 minute - 168 hours
- Power reserve: 60 days
- Ambient temperature: -10 Deg.C - 40 Deg.C
- Ambient humidity: 35 - 85pct RH
- Installation: panel / din rail / wall-mounted
- LCD display, clear and concise
- Use the high quality anti-interference chip
- To achieve energy saving and efficient intelligent
- Three-phase design, safe, reliable and stable performance
- It is widely used in pumps, pond aerators, steaming machines, water heaters, billboards, neon signs, exhaust fans, etc.
Technical Data:
- Working volt: 3 x 380V AC 50 - 60Hz
- Output control: 3 x 16A
- Battery: Ni-MH button battery
- Error correction: 1 second/day ( 25 Deg.C )
- ON / OFF operation: 17 ON / OFF
- Power consumption: 2W and less
- Minimum interval: 1 minute
- Memory: 180 days
- Timer range: 1 minute - 168 hours
- Power reserve: 60 days
- Ambient temperature: -10 Deg.C - 40 Deg.C
- Ambient humidity: 35 - 85pct RH
- Installation: panel / din rail / wall-mounted
Specification

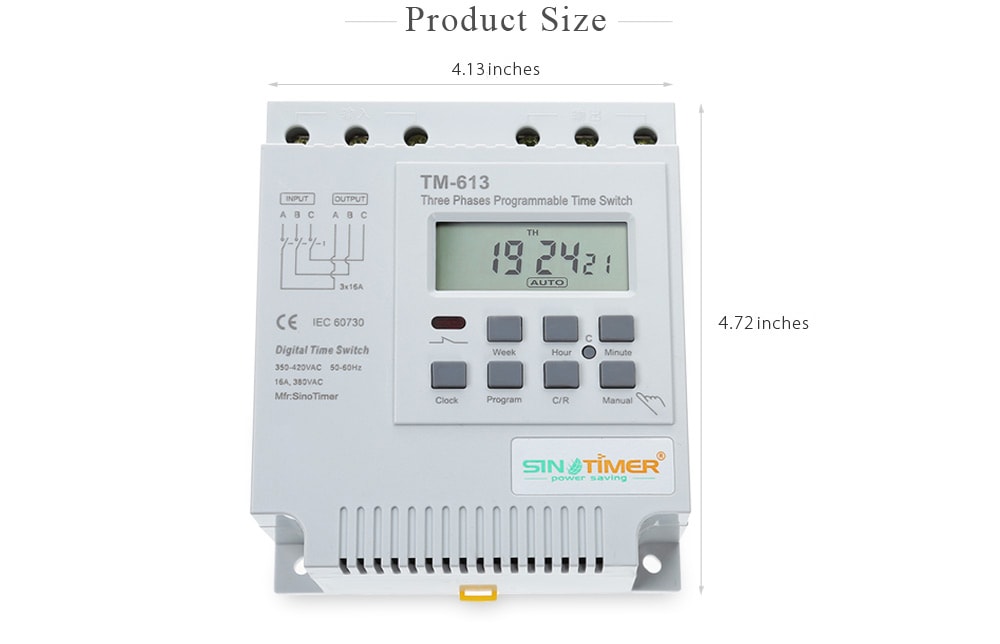

Dimensions and Weight | Product weight: 0.4190 kg Package weight: 0.4780 kg Product Size(L x W x H): 12.00 x 10.50 x 5.00 cm / 4.72 x 4.13 x 1.97 inches Package Size(L x W x H): 12.50 x 11.00 x 6.50 cm / 4.92 x 4.33 x 2.56 inches |
|---|---|
Package Contents | Package Contents: 1 x Timer Switch, 1 x English User Manual |
