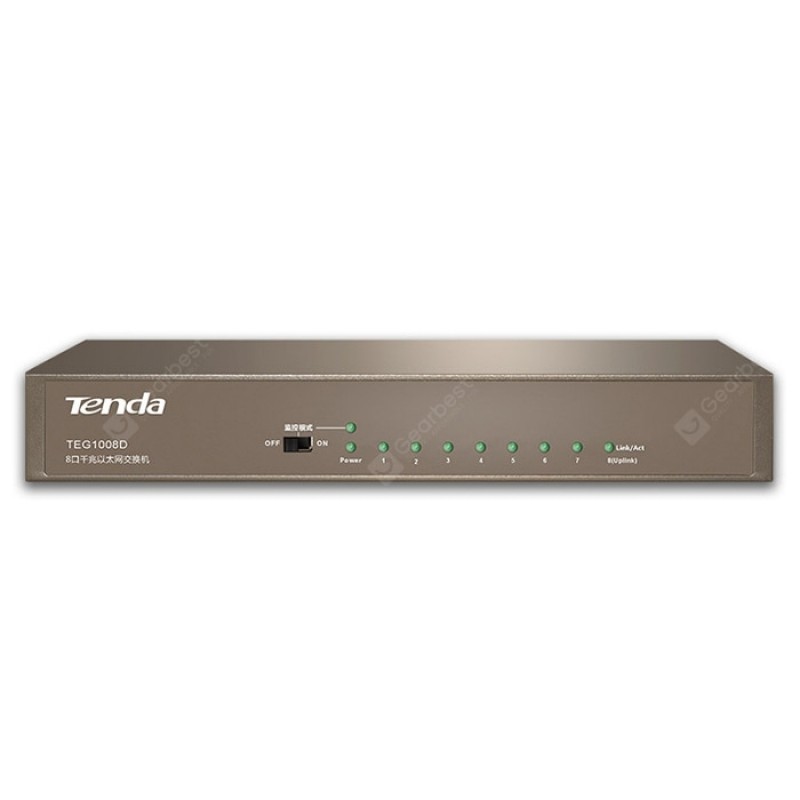

TENDA TEG1008D 8-port Gigabit Switch
Specification
Network standard
IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x
Port: 8 10/100/1000Mbps adaptive RJ45 ports
Speed: Ethernet: 10Mbps (half duplex) / 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex) / 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
MAC address table
4K
LEDs
1 Power light, 1 monitor mode light, 8 Link/Act lights
VLAN
Please take the official website as the standard
Controlled by the monitor mode switch on the front panel.
ON: The ports 1-7 of the switch are isolated from each other, but all communicate with each other.
OFF: Switch 1-8 port interworking port anti-ring support port 8 pin protection 4KV, support for self-loop or downlink loop protection port 8 pin protection
Network standard
IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x
Port: 8 10/100/1000Mbps adaptive RJ45 ports
Speed: Ethernet: 10Mbps (half duplex) / 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex) / 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
MAC address table
4K
LEDs
1 Power light, 1 monitor mode light, 8 Link/Act lights
VLAN
Please take the official website as the standard
Controlled by the monitor mode switch on the front panel.
ON: The ports 1-7 of the switch are isolated from each other, but all communicate with each other.
OFF: Switch 1-8 port interworking port anti-ring support port 8 pin protection 4KV, support for self-loop or downlink loop protection port 8 pin protection
Specification
Dimensions and Weight | Product weight: 0.6000 kg Product size: 18.67 x 10.67 x 3.33 cm / 7.35 x 4.2 x 1.31 inches Package weight: 0.7510 kg Package size: 20.00 x 12.00 x 5.00 cm / 7.87 x 4.72 x 1.97 inches |
---|---|
Package Contents | Package Contents: 1 x Switch, 1 x Power Adapter, 4 x Anti-slip Mat, 2 x Expansion Screw, 2 x Expansion Screw, 1 x Chinese Installation Guide |
