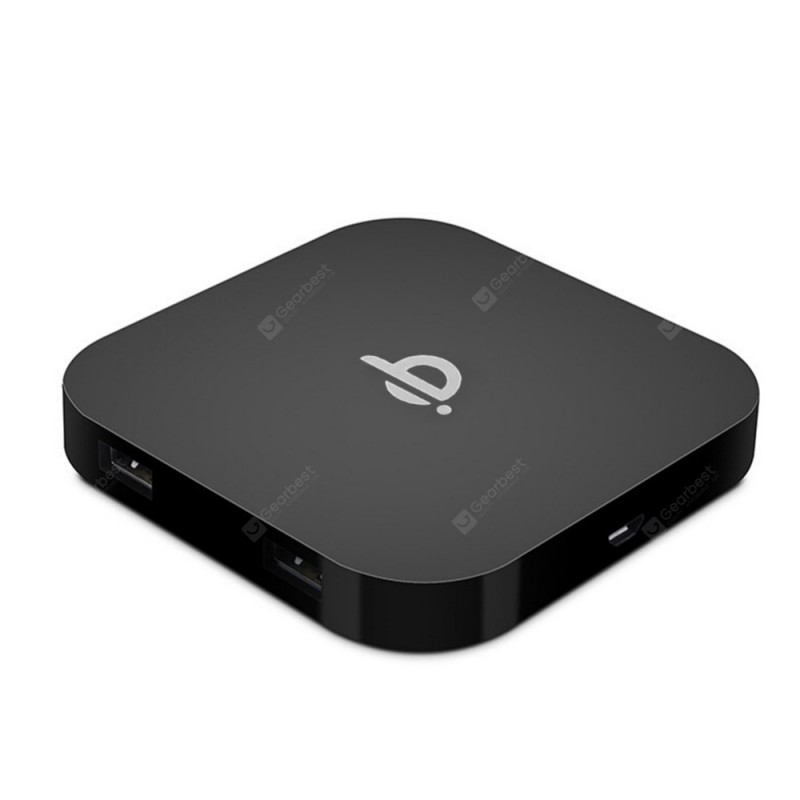

Slim Qi Wireless Phone Charging Pad for IPhone X
Product parameters:
1.Input voltage: DC 4.3V - 5.5V / 1.5 - 2A, if it is out of this range, the voltage will alarm and stop charging.
2.Output voltage: 5V
3.Charging power: up to 5W
4.Conversion efficiency:more than 73 percent
5.Transmission distance: up to 10mm/0.39 inches, recommended receiving distance is 2-4mm/0.08- 0.16 inches
6.Over temperature protection: When the temperature is higher than 60 degree during charging, charging is automatically stopped for 1 minute until the temperature returns to normal.
7.Over current protection: When the output current is higher than 1.5A when charging, charging will stop automatically to prevent damage to the charger.
8.Implementation of the standard: QI wireless charging standard
9.Product Certification: CE or FCC, Compatible with QI Certification
10.Foreign body detection: support
11.Indicator function: green light charging, red light standby, double flash failure.
12.Standby power consumption: average power consumption 50 mW
1.Input voltage: DC 4.3V - 5.5V / 1.5 - 2A, if it is out of this range, the voltage will alarm and stop charging.
2.Output voltage: 5V
3.Charging power: up to 5W
4.Conversion efficiency:more than 73 percent
5.Transmission distance: up to 10mm/0.39 inches, recommended receiving distance is 2-4mm/0.08- 0.16 inches
6.Over temperature protection: When the temperature is higher than 60 degree during charging, charging is automatically stopped for 1 minute until the temperature returns to normal.
7.Over current protection: When the output current is higher than 1.5A when charging, charging will stop automatically to prevent damage to the charger.
8.Implementation of the standard: QI wireless charging standard
9.Product Certification: CE or FCC, Compatible with QI Certification
10.Foreign body detection: support
11.Indicator function: green light charging, red light standby, double flash failure.
12.Standby power consumption: average power consumption 50 mW
Specification
Dimension and Weight | Product weight: 0.0650 kg Package weight: 0.0700 kg Product Size(L x W x H): 10.00 x 10.00 x 1.00 cm / 3.94 x 3.94 x 0.39 inches Package size (L x W x H): 12.00 x 12.00 x 2.00 cm / 4.72 x 4.72 x 0.79 inches |
---|---|
Package Contents | Package Contents: 1 x Wireless Charger, 1 x USB Cable, 1 x User Manual(Chinese and English ) |
